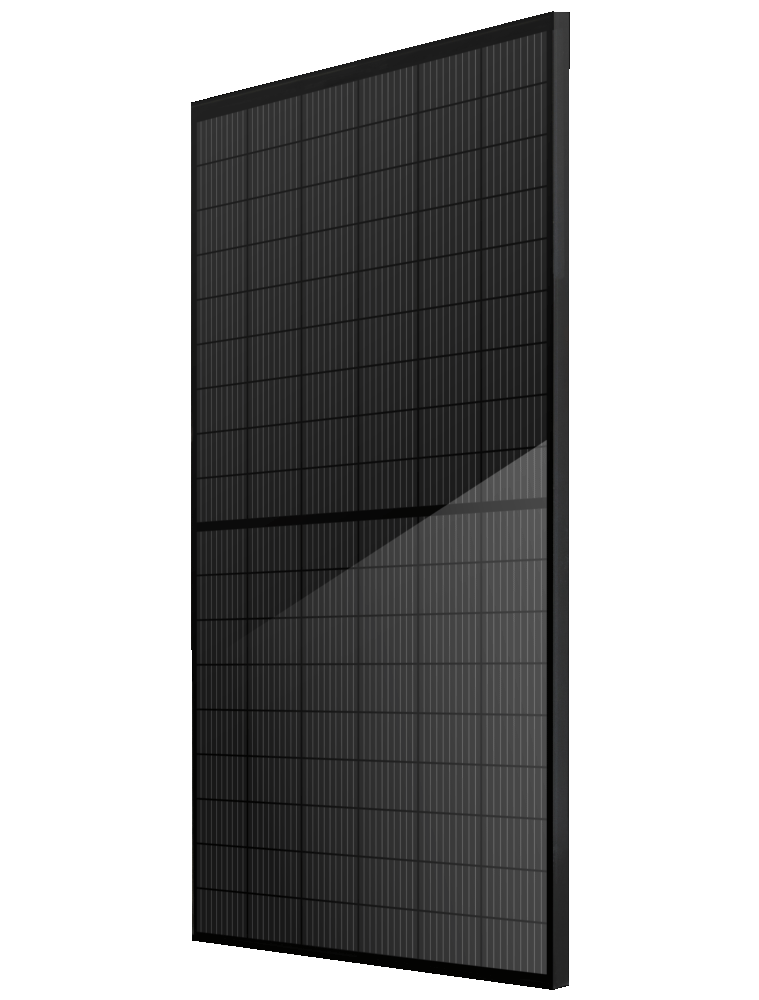

ONYX ES SERIES 400-415W FULL BLACK
ONYX Technology
M10 Gallium doped mono wafer
P-type PERC cell
9BB Half-cut technology
Color back sheet – Black
21% module efficiency
largest cell size (182×91)
IDEAL FOR
Private rooftop installation
Commercial and Industrial
Ground-mounted solar power plants
TECHNICAL DATA
Type
ONYX 108MHC-FULL BACK glass, half cell modules
Power classes
up to 415 Wp
Efficiency
up to 21.22% (up to +25% from back side)
Size
1724 x 1134 x 30 mm
Weight
Up to 20.7 kg
Warranty
At least 97% of nominal power during the first year.
Thereafter max. 0.415% degradation per year.
At least 86.63% of nominal power up to 25 years.
At least 84.55% of nominal power up to 30 years.
Thereafter max. 0.415% degradation per year.
At least 86.63% of nominal power up to 25 years.
At least 84.55% of nominal power up to 30 years.
YOU CAN READ MORE INFORMATION IN OUR DATA SHEET:
DATA SHEET-
Positive power tolerance (0+5W) guaranteed
-
Lower operation temperature.
-
Hight module conversion efficiency (up to 21%) benefit from Passivated Emmiter Rear Contact (PERC) technologydesing with black frame option
-
30 years linear performance warranty
-
Aesthetic design. Uniformity appreance, aesthetic reliable. Less hot spot heating risk, make the module more efficiency.
-
20 years manufacturer’s warranty
