ONYX ES SERIES 530-560W BIFACIAL
ONYX ES SERIES 530-560W BIFACIAL
ONYX Technology
IDEAL FOR
Commercial and Industrial
Ground-mounted solar power plants
TECHNICAL DATA
Type
ONYX 144MHC Bifacial Glass, half cell modules
Power classes
up to 560 Wp
Efficiency
up to 27.66%(up to +30% from back side)

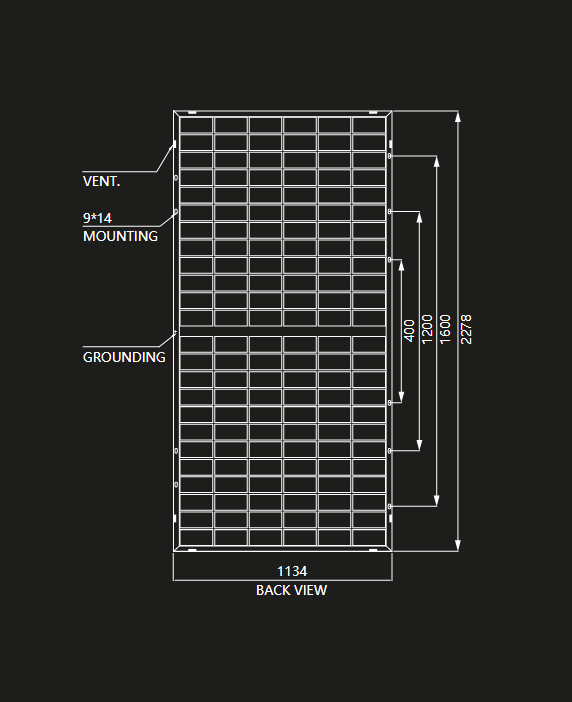

Size
2279 x 1134 x 30 mm
Weight
Up to 31.8 kg
Warranty
At least 97% of nominal power during the first year.
Thereafter max. 0.415% degradation per year.
At least 86.63% of nominal power up to 25 years.
At least 84.55% of nominal power up to 30 years.
Thereafter max. 0.415% degradation per year.
At least 86.63% of nominal power up to 25 years.
At least 84.55% of nominal power up to 30 years.
YOU CAN READ MORE INFORMATION IN OUR DATA SHEET:
DATA SHEET-
Positive power tolerance (0+5W) guaranteed
-
Lower operation temperature.
-
Hight module conversion efficiency (up to 21%) benefit from Passivated Emmiter Rear Contact (PERC) technologydesing with black frame option
-
30 years linear performance warranty
-
Aesthetic design. Uniformity appreance, aesthetic reliable. Less hot spot heating risk, make the module more efficiency.
-
20 years manufacturer’s warranty
